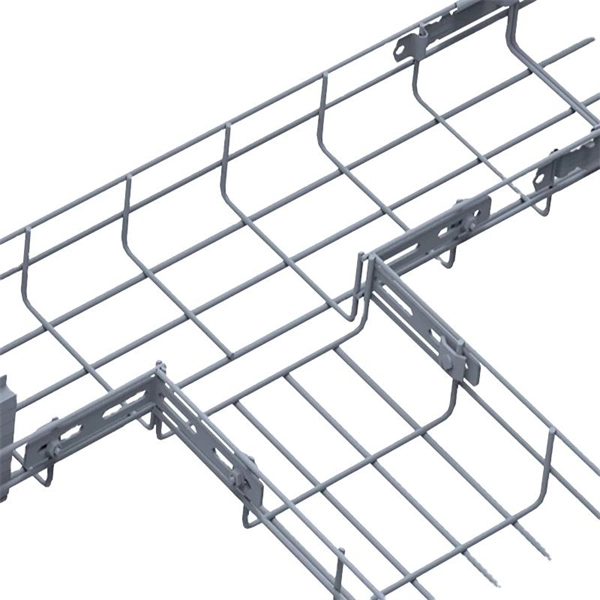

Spacing of fixed cable tray hangers

Cable tray hangers should typically be spaced no more than 1. 5 meters apart, with fixed supports at key points such as corners, T-junctions, and tray ends to ensure stability and prevent sagging.

General Guidelines

Hanger Spacing: For horizontal cable tray runs, hangers or suspension rods should generally be installed at intervals not exceeding 1. 5 meters, although this may vary depending on tray type, load, and material. Ladder-type trays often require supports every 4 to 6 feet (1.

2–1. 8 meters) to maintain structural integrity and prevent excessive sagging, while perforated or wire mesh trays may follow similar spacing recommendations for uniform support and ventilation. Vertical Runs: For vertical cable tray installations, supports should be fixed to the building structure at intervals preferably less than 2 meters to maintain stability and prevent undue stress on cables.

Fixed Supports: Fixed supports are critical at tray beginnings, ends, corners, T-junctions, and spans exceeding 30 meters. These supports distribute the weight of the cables, prevent sagging, and maintain system integrity. At bends or corners, it is recommended to install one hanger on each side, arranged symmetrically to avoid stress on the cables.

Load and Tray Type Considerations

The spacing between supports may need adjustment based on cable weight, tray material, and environmental factors. Heavier cables or stiffer sheaths (e.g., MDPE) may require shorter spacing to limit deflection, while lighter or more flexible cables can allow slightly longer intervals. Safety factors typically range from 1.

5 to 2. 0, with higher values for industrial, corrosive, or seismic environments. Tray Type Examples: Ladder trays: Ideal for heavy power cables; supports every 1.

2–1. 8 meters. Perforated trays: Good ventilation; similar support spacing.

Wire mesh trays: Lightweight, used for data or fiber optic cables; spacing may be slightly longer but should follow manufacturer guidance.

Installation Tips

Ensure hangers are at least 8 mm in diameter for stability. Maintain straight, orderly cable layout within trays to avoid overlaps or stress points. Secure cables at start, end, and turns, and every 3–5 meters along horizontal runs; vertical runs should be secured at the top and every 1.

5 meters. Allow for thermal expansion and contraction in flexible systems to prevent displacement from hangers. Maintain minimum clearances: at least 2.

2 meters above ground and 0. 3 meters from ceilings or obstructions. By following these guidelines, cable tray systems will remain structurally sound, safe, and compliant with electrical standards while allowing for proper ventilation, maintenance, and future modifications.
