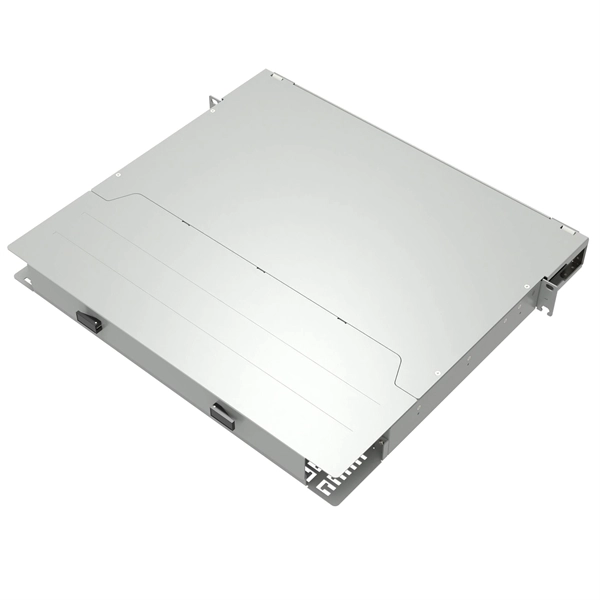

How to connect the terminal box to the network

To connect a terminal box to the network, you need to properly mount the box, prepare and connect fiber optic cables, secure adapters, and test the connections for signal quality.

Preparation

Gather Tools and Materials: You will need a fiber optic terminal box, fiber optic cables, fiber adapters, cable cutters and strippers, labeling tape, cleaning agents, gloves, and a fiber optic tester or power meter. Inspect Cables: Check all fiber optic cables for damage or defects and lay them flat for easier handling. Select Installation Location: Choose a location that is accessible, stable, and allows proper cable management.

Wall-mounted or rack-mounted positions are common, with at least 20 cm clearance from cable exits. Installation of the Terminal BoxMount the Box: Secure the terminal box using expansion screws or other suitable fasteners. Ensure it is firmly anchored to prevent movement.

Label the Box: Mark the terminal box with its purpose and network reference to simplify future maintenance.

Connecting Fiber Optic Cables

Trim and Clean Cables: Cut the fiber optic cables to the required length and clean the ends using alcohol or a specialized cleaner. Insert Cables into the Terminal Box: Open the connector cover and insert the fiber optic connectors into the corresponding ports. Match each cable to its designated port and secure it without sharp bends or pinches.

Use Fiber Adapters: Connect pigtails or jumpers through fiber adapters (flanges) to link the terminal box to network devices. Ensure adapters are properly aligned and spaced to avoid signal loss. Splicing (if needed): If extending fibers, use a splice box to join cables before connecting to the terminal box.

Note that terminal boxes and splice boxes serve different purposes: terminal boxes fix pigtails and allow active connections, while splice boxes are sealed for cable fusion.

Testing and Verification

Check Connections: Gently tug on cables to ensure they are secure and stable. Test Signal Quality: Use a fiber optic power meter or tester to verify proper light transmission and identify any weak or lost signal points. Maintenance: Schedule regular inspections to clean connectors, check for loose or damaged cables, and replace worn components to maintain network performance.

By following these steps, the terminal box will be properly connected to the network, ensuring reliable fiber optic signal distribution and long-term network stability.
