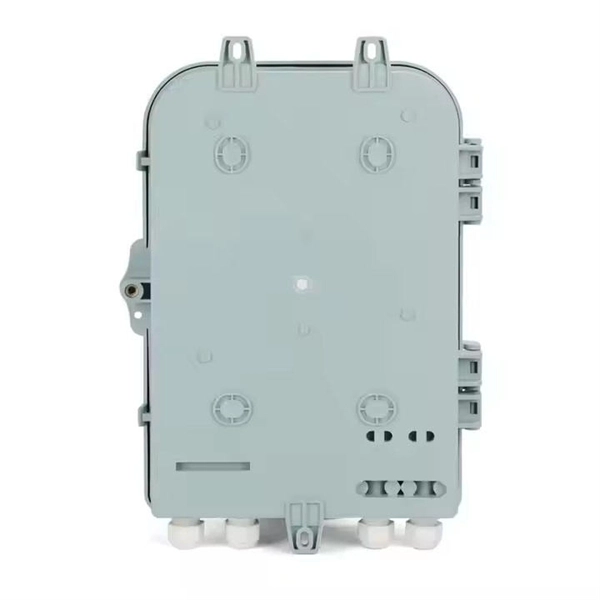

Industrial Distribution Box Wiring Standards

Fiber and communications infrastructure knowledge brief Published 20 Dec 2021

Prepared for preliminary research by the ALFA PRO knowledge desk. Confirm optical interfaces, port or core capacity, electrical input and output, enclosure protection, thermal design and installation limits against current standards and product documentation.

Industrial distribution boxes should be wired according to load requirements, voltage levels, protection standards, and international electrical codes to ensure safety, efficiency, and reliability.

Key Components and Layout

An industrial distribution box typically contains circuit breakers, busbars, terminal blocks, DIN rails, and wiring for multiple circuits. The layout should separate different voltage levels (e.g., 400V, 1kV, 10kV) to prevent interference and ensure safety. High-power equipment clusters should be connected to dedicated circuits, while low-power areas like control rooms can share smaller circuits.

Proper load calculation is essential to avoid overloads and ensure each circuit is rated for its expected current.

Wiring Specifications

Wire Type and Gauge: Use high-temperature resistant copper conductors. The cross-sectional area must match the load current requirements to prevent overheating. Grounding: All metal parts, including the box, electrical boards, and appliance casings, must be reliably grounded.

The protective neutral wire should be connected through a terminal board. Cable Management: Wires should be neatly routed, labeled, and secured to avoid exposure or confusion. Cable entry points and cover joints must be sealed to prevent dust or moisture ingress.

Protection Devices: Each circuit should have its own breaker, fuse, or surge protector. Leakage protectors are recommended for additional safety.

Installation Considerations

Placement: Install in dry, ventilated areas at a height of 1. 5–1. 8 meters for easy access and inspection.

Avoid humid or corrosive environments. Enclosure: Choose steel for durability in harsh environments or plastic for indoor use.

Ensure the IP or NEM

A rating matches environmental conditions. Accessibility: Internal components must be accessible for commissioning, operation, and troubleshooting. Ventilation openings may be required for devices with high heat dissipation.

Compliance: Follow IEC, NEC, or local electrical codes. Use UL/CE-certified components and document installation details for inspections.

Best Practices

Load Distribution: Strategically place distribution boxes to minimize cable length and power losses. Voltage Separation: Keep circuits of different voltage levels physically separated. Modular Design: Consider modular or pluggable systems for easier future upgrades.

Maintenance: Schedule regular inspections and testing to ensure long-term reliability. By following these standards and best practices, industrial distribution boxes can provide safe, efficient, and reliable power distribution while minimizing downtime and maintenance costs.
