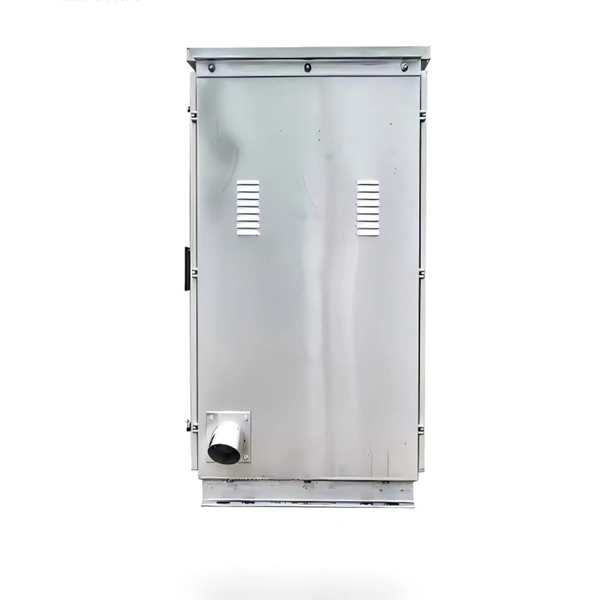

Structure of Iron Distribution Box

An iron distribution box is a metal enclosure housing switches, protective devices, busbars, and wiring to safely distribute and control electrical power.Enclosure and Material

Iron distribution boxes are typically made from steel or galvanized iron, providing high mechanical strength, fire resistance, and protection against impact, dust, and accidental contact . The metal enclosure also ensures proper grounding and can meet specific IP ratings for dust and water protection, making it suitable for industrial or heavy-duty environments .

Internal Components

The internal structure of an iron distribution box is designed to manage incoming power and distribute it safely to multiple circuits. Key components include :

• Main Switch or Circuit Breaker: Controls the incoming power supply and allows complete isolation for maintenance or emergencies.
• Busbars: Conductive bars (usually copper or aluminum) that distribute power to outgoing circuits. Separate neutral bars and earth bars are included for proper grounding and neutral connections.
• Miniature Circuit Breakers (MCBs): Protect individual circuits from overload and short-circuit currents.
• Residual Current Devices (RCDs/RCCBs/RCBOs): Provide protection against earth leakage and reduce the risk of electric shock.
• Surge Protective Devices (SPDs): Protect the system from voltage spikes caused by lightning or switching surges.
• DIN Rails: Standardized mounting rails for securing MCBs, RCDs, and other modular devices.
• Cable Entries and Wiring Space: Organized areas for incoming and outgoing cables, ensuring neat wiring and heat dissipation.

Functional Layout

The layout inside an iron distribution box is carefully arranged to ensure safety, accessibility, and efficient operation :

1. Incoming Power Section: Main switch and surge protection devices are positioned at the top or side for easy access.
2. Distribution Section: Busbars connect to MCBs or RCBOs, which then feed individual circuits.
3. Neutral and Earth Bars: Positioned to allow organized termination of neutral and protective earth conductors.
4. Space for Expansion: Extra slots or DIN rail space for future circuit additions.
5. Safety Separation: Live parts are shielded to prevent accidental contact, and components are spaced to avoid overheating.

Safety and Standards

Iron distribution boxes are designed to comply with international standards such as IEC 61439, IEC 60898, UL/NEC, and local electrical codes . They provide overcurrent protection, short-circuit protection, isolation, and containment, ensuring both the safety of the electrical system and the people using it . In summary, an iron distribution box combines a robust metal enclosure with a well-organized internal layout of switches, protective devices, busbars, and wiring to safely distribute electrical power while providing protection against faults and environmental hazards.
