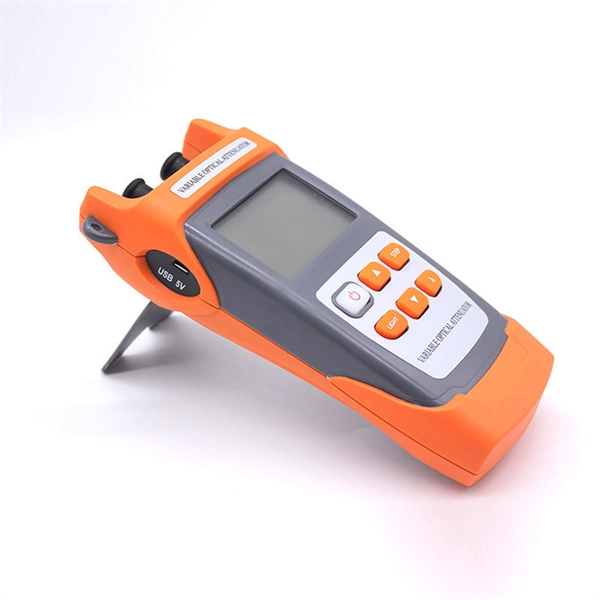

Fiber optic cable data analysis tools include hardware testers for measuring loss and faults, OTDR devices for network diagnostics, and software for post-processing and reporting test results.Hardware Tools for Fiber Testing
Fiber testers are essential for verifying the performance of optical fiber networks. They measure key parameters such as insertion loss, optical return loss, and fiber length, helping to identify issues like bends, breaks, or dirty connectors in both single-mode and multimode fibers (Fluke Networks) . Popular hardware tools include:
- SimpliFiber® Pro: Measures multimode and single-mode fiber power and loss, with built-in results storage and automatic wavelength synchronization for efficient testing .
- MultiFiber™ Pro: Certifies MPO fiber trunks, testing all 12 fibers in a single connector simultaneously, reducing test time significantly .
- OptiFiber® Pro OTDR: Provides optical time-domain reflectometry for troubleshooting and certification, suitable for enterprise and outside plant (OSP) environments .
- Fiber QuickMap™: Locates severe bends, high-loss splices, breaks, and contaminated connectors quickly without lengthy setup . These tools often feature touchscreen interfaces, real-time results, and mobile app integration for storing and sharing test data .
Software Tools for Data Analysis
Post-processing software is critical for analyzing and documenting fiber test results. Key software solutions include:
- FiberTrace 2 Suite (OFS100): Allows users to view, edit, analyze, and generate reports from field-acquired optical fiber test data .
- FiberCable 2 Suite (OFS200): Provides similar capabilities for cable-specific testing, enabling accurate documentation and reporting of network performance . These software tools support post-processing, reporting, and long-term documentation, ensuring that test data can be reviewed, shared, and archived efficiently. Trial versions are available for initial evaluation, with full functionality requiring a license .
Comprehensive Testing and Monitoring
Advanced fiber testing solutions from providers like VIAVI Solutions combine inspection, cleaning, testing, and monitoring capabilities. These tools ensure network reliability and performance, supporting both optical and mechanical evaluations of fiber components and links . They are designed to streamline certification, troubleshooting, and maintenance across the entire network lifecycle.
Summary
For effective fiber optic data analysis, a combination of hardware testers (for real-time measurements and fault detection) and software tools (for post-processing and reporting) is recommended. Tools like SimpliFiber Pro, MultiFiber Pro, OptiFiber Pro OTDR, FiberTrace 2 Suite, and FiberCable 2 Suite provide comprehensive solutions for both enterprise and field environments, ensuring accurate, efficient, and reliable fiber network performance assessment.
