Multimode optical cable equipment

Fiber and communications infrastructure knowledge brief Published 08 Dec 2021

Prepared for preliminary research by the ALFA PRO knowledge desk. Confirm optical interfaces, port or core capacity, electrical input and output, enclosure protection, thermal design and installation limits against current standards and product documentation.

Multimode optical cable equipment includes fibers, connectors, transceivers, and cabling systems designed for high-speed, short- to medium-distance data transmission.Overview of Multimode Optical Fiber

Multimode fiber (MMF) features a larger core diameter (50–100 µm), allowing multiple light modes to propagate simultaneously, which simplifies alignment and reduces equipment costs compared to single-mode fiber . MMF is ideal for short-distance applications such as within buildings, campuses, or data centers, supporting data rates up to 100 Gbps over distances typically ranging from 300 to 550 meters depending on fiber type (OM3, OM4, OM5), . MMF can use lower-cost light sources like LEDs and VCSELs, making it cost-effective for enterprise networks .

Key Equipment Components

1. Fiber Cables

  • Multimode cables are available in loose-tube, tight-buffered, and ribbon formats for indoor and outdoor use .
  • Common types include OM1, OM2, OM3, OM4, and OM5, each with different core sizes, modal bandwidths, and maximum transmission distances .
  • Cables can be armored or non-armored, with temperature ranges from -40°C to 70°C for industrial applications . 2. Connectors and Terminations

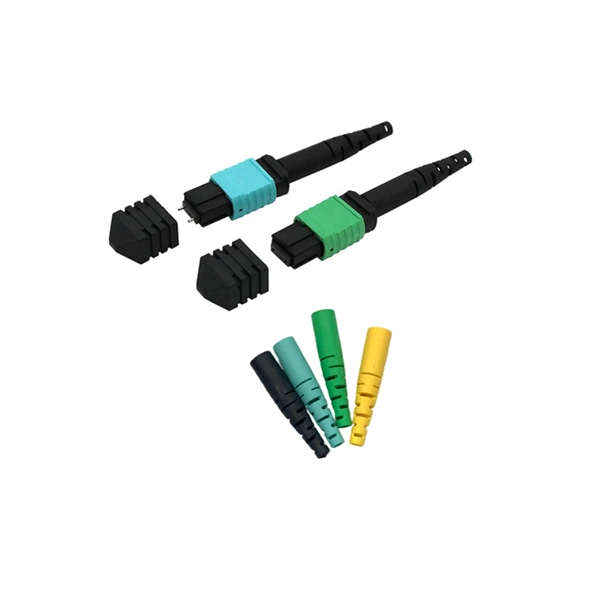

  • MMF supports multiple connector types such as LC, SC, MT, and MPO .
  • Pre-assembled plug-and-play systems reduce installation time and ensure low insertion loss and high reliability . 3. Transceivers
  • MMF transceivers convert electrical signals to optical signals and vice versa.
  • Commonly use VCSEL-based technology for short-reach, high-speed connections, offering low power consumption and high reliability . 4. Cabling Systems
  • Structured cabling solutions integrate fibers, connectors, and patch panels for centralized or distributed network architectures .
  • Systems are designed for ease of handling, scalability, and maintenance, supporting backbone and horizontal cabling in data centers and enterprise networks .
Applications
  • Data centers and enterprise networks for high-speed LAN and backbone connections .
  • Fiber to the desktop or telecom enclosures to centralize electronics and reduce active equipment on each floor .
  • Specialized uses such as fiber optic spectroscopy, laser energy transmission, and industrial sensing .
Advantages
  • Cost-effective due to lower-cost light sources and simpler installation.
  • High bandwidth suitable for modern high-speed networks.
  • Flexible deployment in indoor, outdoor, and industrial environments.
  • Future-proofing with OM4 and OM5 fibers supporting multiple wavelengths for next-generation networks . In summary, multimode optical cable equipment encompasses fibers, connectors, transceivers, and structured cabling systems optimized for short- to medium-distance, high-speed data transmission, offering a balance of performance, reliability, and cost-efficiency for enterprise and data center networks.
