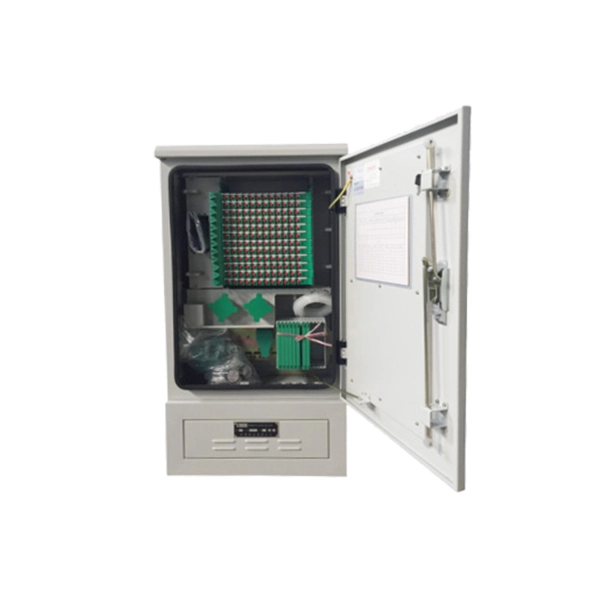

Add conduit to the distribution box

Installing a conduit for a distribution box involves planning the route, selecting the right conduit type, cutting and bending the conduit, securing it, and pulling the wires safely through it. Step 1: Planning and PreparationStart by evaluating the installation area and tracing the path from the main power source to the distribution box. Ensure the route is short, accessible, and avoids obstacles such as water, flammable materials, or corrosive substances.

Choose the appropriate conduit type—EMT (Electrical Metallic Tubing), PVC, or flexible metal—based on your environment and wiring needs. Gather tools including a conduit bender, cutter, fish tape, fasteners, connectors, measuring tape, and marker. Step 2: Measuring and CuttingMeasure the total length of conduit required along the planned path.

Mark the points for bends and cut the conduit to size using a conduit cutter or hacksaw. Remove burrs from the cut ends with a deburring tool or pliers to prevent damage to wires. Step 3: Bending the ConduitUse a conduit bender to make the necessary bends at the marked points.

For metal conduits, ensure the bends are smooth and precise to maintain proper alignment with the distribution box and other fittings. Step 4: Securing the ConduitAttach the conduit to walls or surfaces using screws, straps, or clips, keeping it within three feet of the distribution box for stability. Ensure the conduit is level and properly aligned along the entire route.

Step 5: Connecting to the Distribution BoxThread the conduit ends into the distribution box using appropriate connectors or adaptors. For metal conduits, hand-threading with stocks and dies may be required. Ensure a secure and tight connection to prevent movement or exposure.

Step 6: Pulling the WiresUse fish tape or draw wire to pull the electrical wires through the conduit. Connect each conductor to its designated terminal in the distribution box—line to line, neutral to neutral, and ground to ground—following color coding standards. Secure wires with cable ties and leave space for heat dissipation.

Step 7: Final ChecksAfter installation, perform an insulation resistance test to verify proper wiring and safety. Ensure all connections are tight, the conduit is stable, and the wiring is neatly arranged. Label circuits for future maintenance and troubleshooting.

By following these steps, you can safely and efficiently install a conduit for a distribution box, ensuring compliance with electrical standards and long-term reliability.
