Does the analog surveillance system use fiber optic cables

Analog surveillance systems typically use coaxial cables, but they can also transmit video over fiber optic cables with the use of transceivers or media converters.Standard Cabling in Analog Systems

Traditional analog CCTV systems rely on coaxial cables (usually RG59) to connect cameras to a Digital Video Recorder (DVR). These cables carry raw video signals directly from the camera to the DVR for processing and storage. Modern HD analog technologies, such as HD-TVI or HDCVI, allow high-resolution video (up to 4K) to be transmitted over these coaxial runs, sometimes including power over coax options .

Using Fiber Optics with Analog Systems

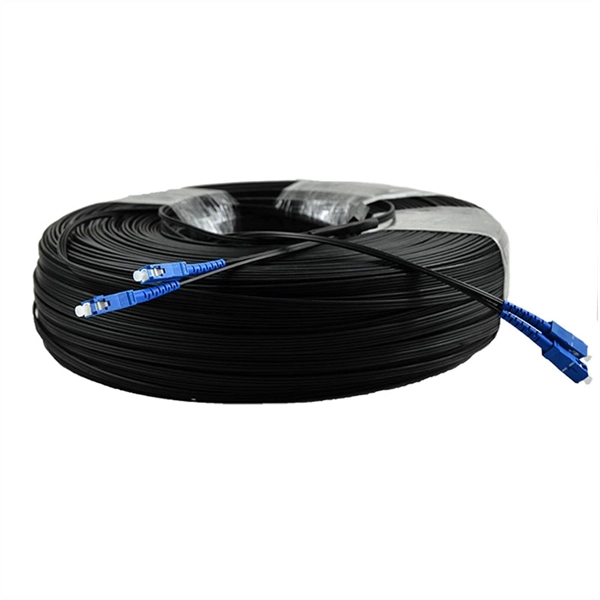

While coaxial cables are standard, fiber optic cables can be used to extend the transmission distance and improve signal quality. Analog video signals are first converted into optical signals using fiber optic transceivers or media converters. One transceiver is placed near the camera, and the other near the DVR or recording device. This setup allows the analog signal to travel long distances with minimal interference and low latency . For example, an FPGA-based analog video transmission system can digitize PAL/NTSC signals, send them over fiber, and then reconstruct the original analog signal at the receiving end . Some systems even allow direct connection of analog cameras to fiber via SFP modules without additional media converters .

Advantages of Fiber Optic Transmission

• Longer transmission distances compared to coaxial cables without signal degradation.
• Immunity to electromagnetic interference, which is beneficial in industrial or high-voltage environments.
• High-quality video maintenance over extended runs.
• Scalability for integrating hybrid analog/IP systems in the future .

Key Considerations

• Fiber optic setups require paired transceivers or SFP modules to convert electrical signals to optical signals and back.
• Installation is generally more complex and costly than standard coaxial cabling.
• Proper management, such as rack-mounted transceiver chassis, is recommended for larger systems . In summary, while analog surveillance systems primarily use coaxial cables, fiber optic cables can be integrated to enhance distance, quality, and reliability, provided the system includes the necessary transceivers or media converters. This makes fiber a viable option for long-distance or interference-prone installations.
