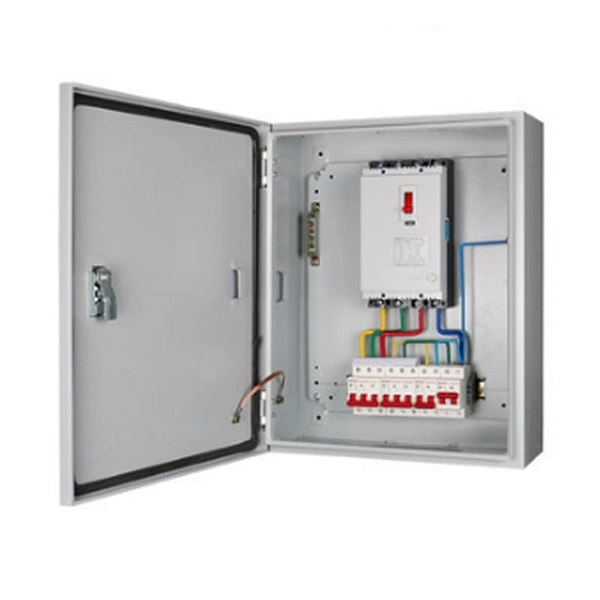

Photovoltaic combiner box characteristics description

PV combiner boxes consolidate multiple solar panel strings into a single output while providing overcurrent protection, monitoring, and system safety features.

Core Functions

A P

V combiner box is an electrical enclosure that aggregates the DC output from multiple solar panel strings into a single output for connection to an inverter, simplifying wiring and improving system efficiency. It reduces the number of individual wires, minimizes potential points of failure, and facilitates easier installation and maintenance. Electrical ProtectionPV combiner boxes are equipped with fuses or circuit breakers for each input string, providing overcurrent protection to prevent damage to panels or other system components.

Advanced models may include reverse current protection to safeguard against shading or mismatched strings, and surge protection devices to protect against voltage spikes.

Monitoring and Smart Features

Many combiner boxes offer string-level monitoring, allowing operators to track the performance of individual solar strings and quickly identify faults or shading issues. Smart combiner boxes integrate with energy management systems, providing real-time data, remote diagnostics, and communication with inverters for optimized performance.

Types and Configurations

Standard D

C Combiner Box: Combines DC outputs with basic overcurrent protection.

String-

Level Monitoring Box: Adds monitoring for each string. Smart Combiner Box: Advanced monitoring and communication capabilities.

A

C Combiner Box: Consolidates outputs from microinverters or AC modules.

Bi-

Polar Combiner Box: Designed for systems with both positive and negative grounding. Physical and Environmental CharacteristicsPV combiner boxes are built to withstand outdoor conditions, including exposure to dust, moisture, and temperature variations. High-quality enclosures often meet IP65–IP68 ratings, ensuring protection against water ingress and environmental hazards.

Materials are typically durable and weather-resistant to ensure long-term reliability.

System Optimization

By centralizing connections, PV combiner boxes enhance system reliability, allow fault isolation (only the affected string is disconnected in case of failure), and improve energy output by reducing wiring losses. They are essential in large-scale solar installations where managing multiple strings efficiently is critical. SummaryPV combiner boxes are integral components of solar photovoltaic systems, providing a combination of electrical consolidation, protection, monitoring, and environmental durability.

Their use simplifies installation, enhances safety, and ensures optimal performance, making them indispensable in both residential and commercial solar projects.
