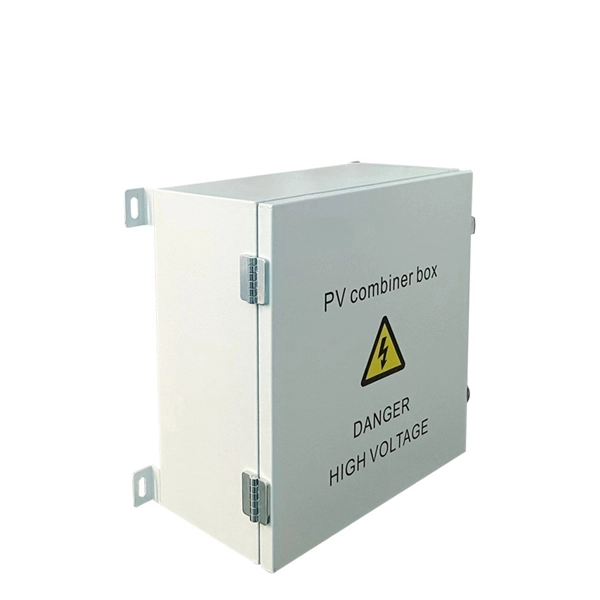

Adjusting the distribution box

Adjusting a distribution box involves safely managing circuit breakers, checking wiring connections, and ensuring proper load distribution to maintain electrical safety and efficiency.

Safety First

Before making any adjustments, turn off the main switch to disconnect power to the distribution box. Always use insulated tools and wear protective equipment. Ensure the area is dry and free from hazards, and never attempt adjustments if you are unsure about electrical safety standards.

Checking and Adjusting Connections

Inspect wiring for damage, loose connections, or insulation issues. Tighten any loose terminals and ensure wires are properly seated in DIN terminals or busbars. Verify voltage levels using a voltmeter at the main supply and at individual circuits to detect voltage drops.

Long cable runs may require heavier gauge wires to maintain proper voltage. Check circuit breakers to ensure they are in the ON position and rated appropriately for each circuit. Replace any faulty breakers or fuses.

Load Distribution

Calculate the total current demand of all circuits and ensure the distribution box can handle the load, including startup currents for appliances. Adjust circuits by redistributing loads across breakers if some circuits are overloaded. This may involve moving wires to different breakers or adding new breakers for balance.

Ensure each circuit's neutral and earth conductors are correctly connected to their respective bars.

Organization and Maintenance

Keep wiring neat and labeled for easy identification and future troubleshooting. Include protective devices like surge protectors or fuses for sensitive equipment. After adjustments, test each circuit individually to confirm proper operation and that protective devices function correctly.

Regular Checks

Schedule periodic inspections to ensure connections remain tight, breakers function properly, and no signs of overheating or wear are present. Proper maintenance extends the life of the distribution box and ensures ongoing safety. By following these steps, you can safely adjust a distribution box, maintain balanced electrical loads, and ensure compliance with safety standards.
