Is ODN a beam splitter

Fiber and communications infrastructure knowledge brief Published 06 Jul 2023

Prepared for preliminary research by the ALFA PRO knowledge desk. Confirm optical interfaces, port or core capacity, electrical input and output, enclosure protection, thermal design and installation limits against current standards and product documentation.

An ODN (Optical Distribution Network) is not itself a beam splitter, but it contains optical splitters that function as beam splitters within the network.

Understanding ODN and Optical Splitters

An Optical Distribution Network (ODN) is a physical infrastructure in fiber optic networks, particularly in FTTH (Fiber to the Home) systems, that connects the Optical Line Terminal (OLT) to multiple Optical Network Units (ONUs). Its primary role is to distribute optical signals efficiently across a network, covering urban or rural areas depending on the splitting architecture. Within an ODN, optical splitters are the key components that perform the actual splitting of light.

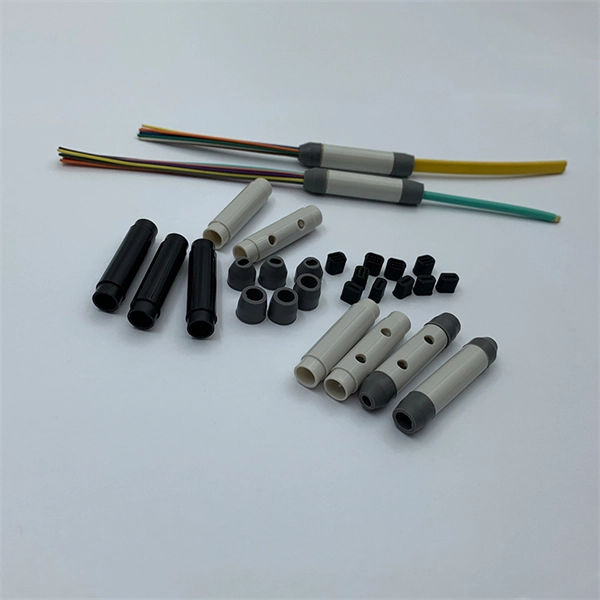

These splitters divide an incoming optical signal into multiple output signals, distributing the light to several endpoints. The split can be primary (centralized) or secondary (cascaded), with typical splitting ratios like 1: 4, 1: 8, 1: 16, 1: 32, or 1: 64. The optical splitter is sometimes referred to as an optical beam splitter, as it redistributes light among multiple fibers, similar in principle to a traditional beam splitter used in optics.

How Optical Splitters Work in ODN

Input signal: Light from the OLT enters the optical splitter. Splitting process: The optical splitter divides the light into multiple outputs, either evenly or according to a specified ratio. Output distribution: Each output fiber carries a portion of the original signal to ONUs or other network nodes.

This mechanism is analogous to a beam splitter in free-space optics, which divides a light beam into transmitted and reflected components. However, in ODNs, the splitting occurs within fiber-based waveguides, not in free space.

Conclusion

While an ODN itself is a network infrastructure, it incorporates optical splitters that act as beam splitters to distribute light signals to multiple endpoints. Therefore, ODNs are not beam splitters per se, but they rely on beam-splitting components to function effectively in fiber optic networks.
