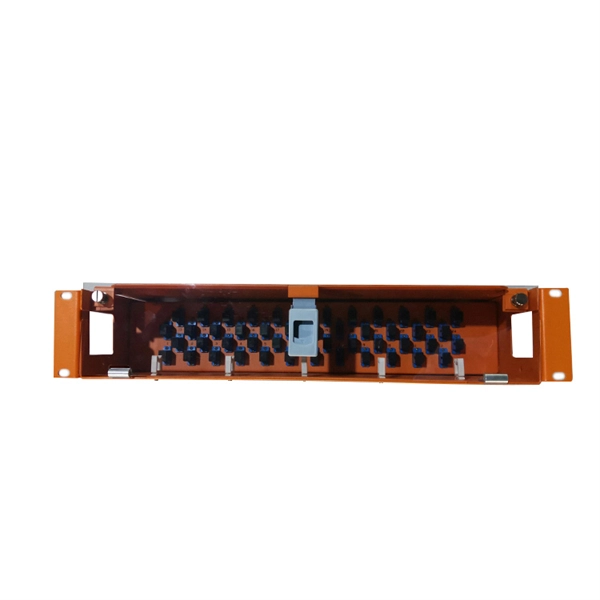

Photovoltaic power generation combiner box voltage

PV combiner boxes are typically rated for 600V, 1000V, or 1500V DC, depending on the system size and string configuration.

Voltage Selection Guidelines

The D

C voltage rating of a PV combiner box must match or exceed the maximum system voltage produced by the solar array. This ensures safe operation and prevents failure of internal components such as fuses, busbars, surge protection devices (SPDs), and isolator switches. Key considerations include: Residential or small systems: Often use 600V DC-rated combiner boxes, suitable for a few series-connected panels per string.

Commercial and large home systems: Typically use 1000V DC-rated boxes, which accommodate longer strings and higher total voltages while reducing wiring complexity and costs. Utility-scale or large commercial systems: Increasingly use 1500V DC-rated boxes, allowing for even longer strings, fewer parallel connections, and improved energy yield.

Factors Affecting Voltage Rating

Number of panels per string: More panels in series increase the string voltage, requiring a higher-rated combiner box. Cold-weather voltage rise: PV modules produce higher voltage at lower temperatures; the combiner box must handle this peak voltage safely. Surge protection: SPDs inside the combiner box must be rated for the system voltage to protect against lightning or transient spikes.

Future expansion: Choosing a box with a slightly higher voltage rating than the current system allows for additional strings without replacing the enclosure.

Summary600

V D

C: Small residential systems, short strings. 1000V DC: Standard for most modern commercial and large residential systems. 1500V DC: Utility-scale or high-voltage commercial arrays.

Always verify that all internal components, including fuses, isolators, and SPDs, are rated for the chosen DC voltage to ensure safety, compliance with IEC/NEC standards, and long-term reliability.
