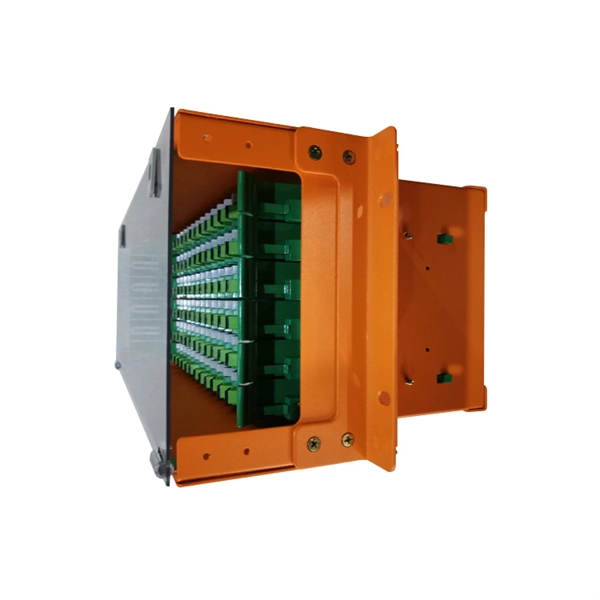

User optical cable testing 12 cores or less

Testing 12-core or smaller fiber optic cables involves Tier 1 loss and polarity verification, with optional Tier 2 OTDR testing for detailed diagnostics and documentation. Tier 1 Testing: Required for All InstallationsTier 1 testing ensures the fiber link meets design specifications and establishes a baseline for future troubleshooting. For 12-core cables, the key steps include: Link Attenuation Testing: Measure optical loss using an Optical Loss Test Set (OLTS) or a Light Source and Power Meter (LSPM) at the wavelength your network will operate (e.g., 850 nm for multimode or 1310/1550 nm for singlemode).

Link Length Verification: Record the cable sheath distance or use the OLTS if it provides length measurement. Polarity Check: Confirm correct transmit/receive orientation using a Visual Fault Locator (VFL) or during attenuation testing. Bidirectional Testing: While unidirectional testing is the minimum, bidirectional testing is recommended to account for differences in connector and fiber characteristics.

Tier 2 Testing: Optional but RecommendedTier 2 testing, often performed with an OTDR (Optical Time-Domain Reflectometer), provides detailed information on: Splice and connector lossesFault locationOptical return lossCable documentation and acceptanceVerification of link length and event loss Even though OTDR testing is powerful, it does not replace Tier 1 testing, as OTDR results can vary due to backscatter, fiber diameter, and other factors.

Best Practices for Small-

Core Cables

Inspect and Clean End-Faces: Dirty or damaged connectors are the leading cause of link failure. Use a video microscope and cleaning wipes to ensure clean end-faces before testing. Use Test Reference Cords (TRCs): Establish a baseline reference by connecting a known low-loss patch cord between the source and meter.

Document Results: Record all measurements, including loss, length, and polarity, for future troubleshooting and network verification. Consider Redundancy: For small installations, plan for spare cores to allow for future expansion or redundancy.

Core Selection Considerations

For networks with 12 cores or fewer: Each device typically requires two cores (one for transmit, one for receive). Redundancy may require additional cores; for example, a dual-switch hot standby may need 6 cores total. Avoid odd-numbered cores; optical cables are generally manufactured in even numbers (2, 4, 6, 8, 12).

Recommended EquipmentOLTS or LSPM for Tier 1 loss testingVFL for polarity verificationOTDR for Tier 2 testing and fault locationVideo microscope for connector inspectionTest reference cords for accurate baseline measurements By following these procedures, a 12-core or smaller fiber optic cable installation can be verified for performance, documented for future reference, and prepared for reliable operation.
