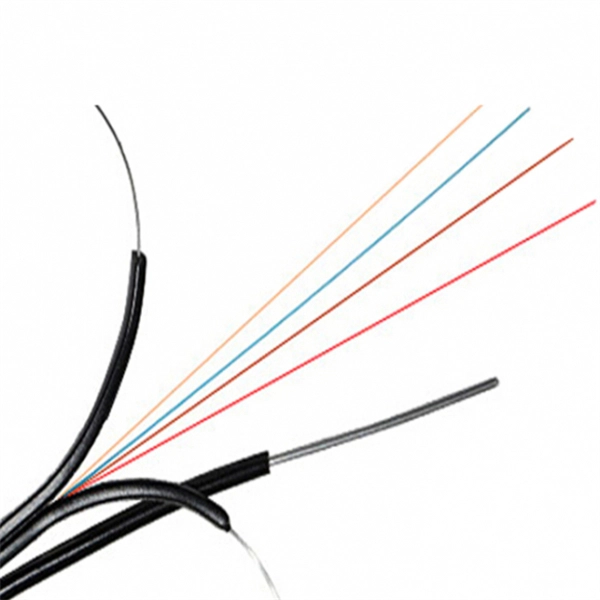

Laying out fiber optic cable

Laying fiber optic cable involves careful planning, proper handling, precise installation, and thorough testing to ensure reliable, high-speed data transmission.Planning and Preparation

Before laying fiber optic cable, conduct a site survey to map the route, identify obstacles, and determine endpoints and intermediate equipment locations. Ensure compliance with local building codes and obtain necessary permits. Choose the appropriate fiber type (single-mode or multimode) and cable construction (armored or dielectric) based on environmental conditions and bandwidth requirements. Plan for future expansion by leaving extra conduit space, typically 25–40% more than the current cable needs .

Laying the CableUnderground Installation

1. Trenching: Excavate a trench along the planned route, avoiding large rocks or debris that could damage the cable.
2. Bedding: Place a layer of sand or fine gravel at the bottom to cushion the cable.
3. Cable Placement: Lay the fiber optic cable carefully, avoiding sharp bends and excessive tension.
4. Warning Tape: Place a warning tape above the cable to alert future diggers.
5. Backfilling: Cover the cable with soil, compacting it to prevent settling .

Aerial Installation

Mount utility poles or use existing infrastructure. Secure the cable with proper tension to prevent sagging and damage from wind or environmental stress. Use clamps and support hardware designed for fiber optic cables .

Indoor Installation

Route cables through conduits, innerducts, or tray systems. Maintain the minimum bend radius and avoid twisting or kinking the fibers. Use cable management systems to organize and protect the fibers .

Termination and Splicing

Terminate the fiber at endpoints using connectors or splice closures. Fusion splicing is preferred for permanent connections, while mechanical splicing can be used for temporary or flexible setups. Protect splices with closures to prevent moisture ingress and mechanical damage .

Testing and Documentation

After installation, test the fiber using an OTDR (Optical Time-Domain Reflectometer) and measure insertion loss to ensure signal integrity. Document the cable route, depth, and connection points for future maintenance or upgrades .

Safety and Best Practices

• Always wear safety glasses and follow lockout/tagout procedures.
• Avoid exceeding the cable's maximum pulling tension.
• Handle fibers carefully to prevent microbends or breaks.
• Follow industry standards such as TIA/EIA-568, ANSI/NECA/FOA-301, and NEC Article 770 for design, safety, and performance . By following these steps, fiber optic cables can be installed safely and efficiently, ensuring long-term network reliability and high-speed data transmission.
