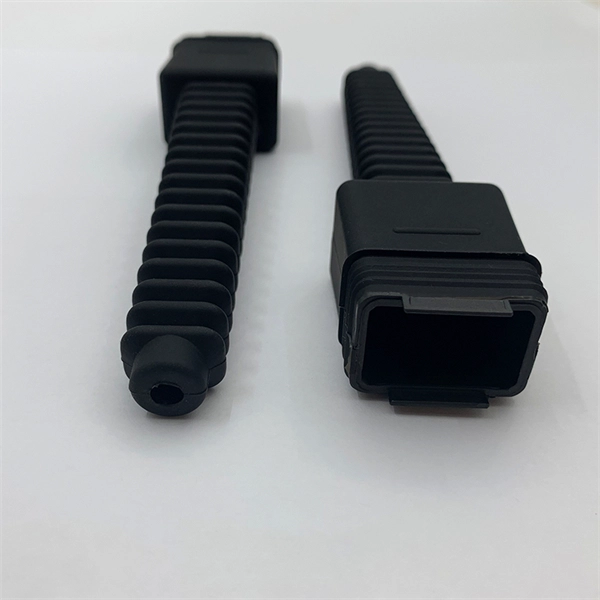

Pigtail Data Interface

A pigtail data interface is a short, pre-terminated cable with a connector on one end and exposed conductors or fibers on the other, serving as a bridge for data or signal connections in electrical, RF, and fiber optic systems.Overview

A pigtail connector is a small cable assembly designed to simplify connections where direct termination is difficult or impractical. One end comes with a pre-installed connector (electrical, RF, or optical), while the other end is left bare for splicing, soldering, or crimping into a larger system . This design allows for flexible integration, stress relief, and reliable signal transmission without subjecting the main cable to mechanical stress .

Types and Applications

1. Electrical Pigtails: Used in automotive, industrial, and home wiring, these connectors carry voltage and ground signals. They are typically made of stranded copper wire with insulation like PVC or cross-linked polyethylene. Common applications include headlight sockets, fuel injector clips, and grounding screws .
2. Fiber Optic Pigtails: These consist of a short optical fiber with a connector pre-installed on one end. The exposed fiber is fusion-spliced to a multi-fiber trunk, enabling high-speed data transmission in telecommunications and networking systems .
3. RF and Coaxial Pigtails: Miniaturized pigtails such as U.FL, H.FL, and I-PEX MHF are used in embedded systems, wireless LAN, GSM, UMTS, Bluetooth, and PC cards. They operate up to 6 GHz, providing low-loss signal transmission in space-constrained applications .

Key Benefits

• Flexibility: Simplifies splicing and integration in tight spaces or complex assemblies .
• Reliability: Reduces mechanical stress on main cables, preventing connection failures .
• Space Efficiency: Miniaturized RF pigtails allow high component density in compact devices .
• Signal Integrity: Maintains low attenuation for high-frequency or optical signals .
• Safety: Electrical pigtails reduce the risk of short circuits and overheating by providing secure connections .

Installation Considerations

• Ensure proper wire gauge and connector compatibility for electrical pigtails .
• Use fusion splicing for fiber optic pigtails to minimize signal loss .
• Maintain minimum bending radius for RF pigtails to prevent attenuation or damage .
• Apply anti-oxidant gel for aluminum wires and perform pull tests to verify mechanical stability .

Conclusion

The pigtail data interface is a versatile solution for connecting devices, cables, or systems in electrical, fiber optic, and RF applications. Its pre-terminated design, flexibility, and reliability make it essential for high-performance data transmission, compact embedded systems, and complex wiring environments .
