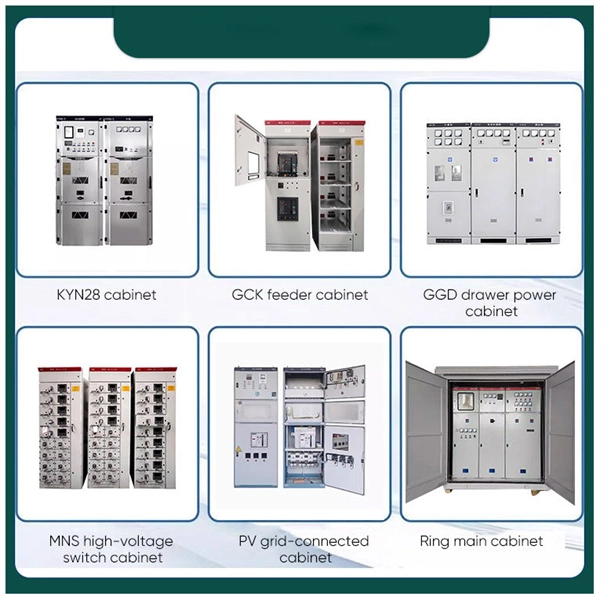

Components of Relay Protection

The main components of relay protection are transducers (sensors), protective relays, and circuit breakers, which work together to detect, process, and isolate faults in a power system. 1. Transducers (Sensors)Transducers serve as the sensing elements of a protection system.

They detect abnormal conditions such as overcurrent, overvoltage, or short circuits and convert high-power electrical quantities to manageable levels for relays. The most common transducers are current transformers (CTs) and potential transformers (PTs).

C

Ts provide a standard secondary current proportional to the primary current, while PTs provide a scaled-down voltage for measurement and relay operation. These sensors ensure accurate detection without exposing relays to high voltages or currents. 2.

Protective Relays

Protective relays act as the decision-making units. They continuously monitor electrical parameters like current, voltage, frequency, and power. When abnormal conditions are detected, relays evaluate the situation based on preset thresholds, time delays, and logic settings, and then initiate a trip signal to isolate the faulted section.

Relays can be electromechanical, static, or microprocessor-based, and may include features like directional sensing, differential protection, and programmable logic for complex protection schemes. 3.

Circuit Breakers

Circuit breakers are the interrupting devices that physically disconnect the faulty section from the system. They operate in response to the trip signal from the relay, opening contacts to stop current flow and prevent equipment damage. Breakers can be manually or automatically operated, and their ratings must match the system voltage, current, and fault capacity.

Auxiliary relays may be used to handle multiple breaker operations or high trip coil currents. 4.

Trip Circuit and Auxiliary Components

The trip circuit connects the relay output to the breaker's operating mechanism, often powered by a DC control source or station battery. Auxiliary relays may be included to amplify the relay signal or coordinate multiple breaker operations. Proper coordination ensures that the faulted section is isolated with minimal disruption to the rest of the system.

Summary

In essence, a relay protection system relies on sensors to detect faults, relays to process and decide, and circuit breakers to isolate the fault, with auxiliary components ensuring reliable operation. Together, these components maintain system stability, protect equipment, and minimize service interruptions.
