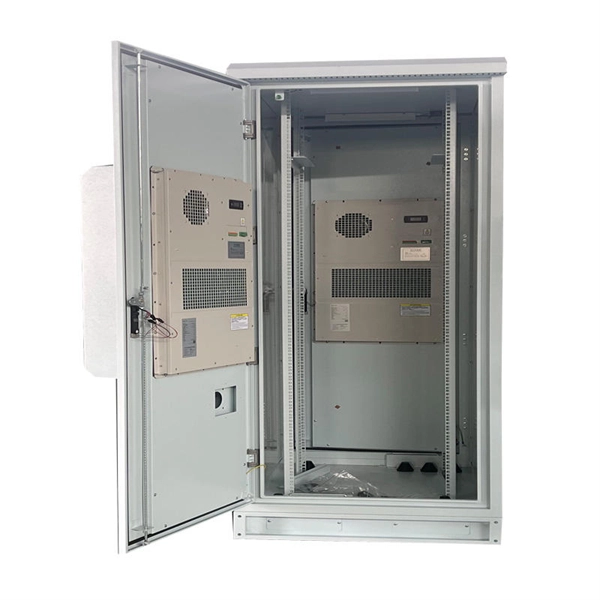

Fiber optic connector box core splitting

Fiber optic connector boxes use splitters to divide a single optical signal into multiple outputs, enabling efficient distribution to multiple users or devices.How Core Splitting Works

A fiber optic splitter is a passive device that divides an incoming optical signal into two or more outputs without requiring power, relying on light manipulation through waveguides and refractive index variations . The process inside a connector box typically follows these steps:

1. Signal Ingress: The main fiber carrying data enters the box and connects to the splitter.
2. Waveguide Interaction: Inside the splitter, light travels through engineered channels that guide and divide the signal.
3. Power Division: The signal is split according to the splitter's ratio (e.g., 1:2, 1:4, 1:32), with each output receiving a portion of the original signal's power.
4. Signal Egress: The divided signals exit through output fibers, which are routed to individual users or network components .

Types of Splitters

• Fused Biconical Taper (FBT): Uses fused fibers to split light, suitable for small split ratios.
• Planar Lightwave Circuit (PLC): Uses photolithography to create precise waveguides, ideal for larger split ratios like 1:32 or 1:64 .

Deployment Architectures

• Centralized Splitting: Splitters are located in a central office or cabinet, allowing flexible assignment of fibers to users via jumpers. This setup simplifies maintenance and customer onboarding .
• Distributed Splitting: Splitters are placed in field closures or pedestals, with fixed fiber assignments. This reduces central office fiber counts but limits flexibility .

Integration in Connector Boxes

Fiber optic connector boxes or distribution boxes house splitters and provide organized ports for input and output fibers. They are designed for both indoor and outdoor use, often supporting LC or SC couplers for single-mode or multimode fibers . The boxes protect the splitters, manage fiber routing, and allow easy access for maintenance or network expansion.

Practical Considerations

• Split Ratio Selection: Determined by network design and the number of users served.
• Loss Management: Each split reduces signal power; careful planning ensures adequate signal strength at endpoints.
• Scalability: PLC splitters in connector boxes allow future expansion without major infrastructure changes . In summary, core splitting in fiber optic connector boxes enables efficient distribution of optical signals to multiple endpoints, using passive splitters integrated into protective enclosures, with deployment strategies tailored to network size, flexibility, and cost.
