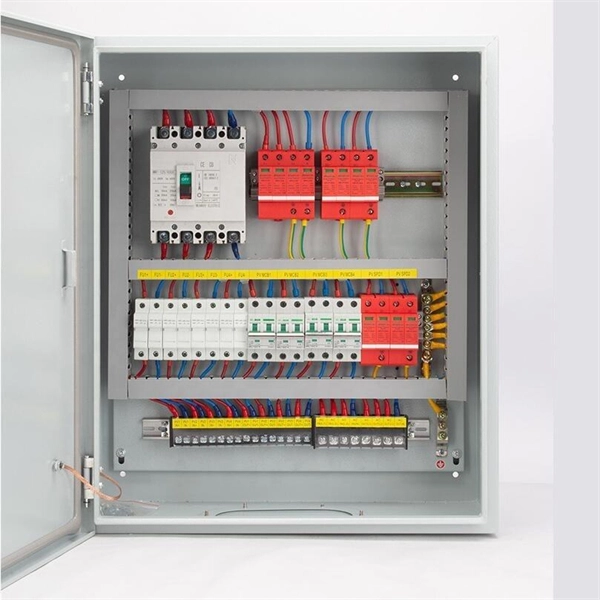

Location of the distribution box on the ground

A ground-mounted distribution box should be installed in a dry, accessible, and safe location, with the bottom surface typically 0. 6–1. 5 meters above the ground.

Installation Height

For fixed stainless steel enclosures, the bottom surface should be 1. 3–1. 5 meters above the ground, while mobile enclosures like irrigation controllers should be 0.

6–1. 5 meters above the ground. This height ensures ergonomic access for routine maintenance, such as operating switches, inspecting circuits, and reading instruments, allowing operators to work comfortably.

Location Considerations

Safety and Environment: Install the box in a dry, well-ventilated area, away from moisture, corrosive gases, liquids, heat sources, and areas prone to impact or vibration. Accessibility: Ensure sufficient space around the box for at least two people to work simultaneously, and maintain clear passageways for maintenance and emergency handling. Proximity to Equipment: Place the distribution box close to the electrical equipment it serves.

The distance to the switch box should not exceed 30 meters, and the horizontal distance to controlled equipment should be within 3 meters to reduce line losses and improve efficiency. Consistency: Within the same building, maintain a uniform installation height for similar boxes, with deviations no greater than 10 millimeters for aesthetic and management purposes.

Additional Tips

Choose a location that allows easy cable entry and wiring management, minimizing construction complexity and material costs. Ensure the box is protected from extreme temperatures and direct sunlight to prevent overheating of internal components. Verify that the enclosure meets the required IP or NEMA rating for outdoor or industrial use to ensure protection against water and dust.

By following these guidelines, a ground-mounted distribution box will be safe, accessible, and compliant with electrical standards, ensuring reliable operation and ease of maintenance.
