Recommended patch cords and pigtails for computer rooms

Use pigtails for permanent splicing and patch cords for flexible, front-end connections to devices and patch panels.

Understanding Patch Cords and Pigtails

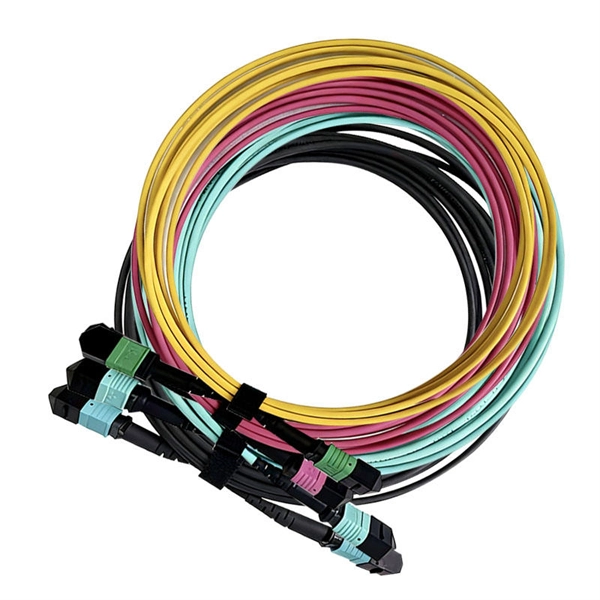

Patch cords are short, flexible fiber optic cables with connectors on both ends, designed to connect active equipment (like switches, routers, or transceivers) to patch panels or other devices. They are ideal for frequent mating cycles and reconfigurable connections, allowing easy moves, adds, or changes without disturbing permanent splices. Patch cords typically range from 1 to 10 meters and are constructed with bend-insensitive fibers for tight routing behind racks.

Pigtails, on the other hand, have a connector on one end and bare fiber on the other. They are fusion-spliced to incoming field cables inside optical distribution frames (ODFs) or terminal boxes, creating a permanent, low-loss interface. Pigtails are commonly used in backbone or permanent installations where field termination of connectors is impractical.

They provide higher long-term reliability and minimize signal loss compared to field-terminated connectors.

Recommended Usage in Computer Rooms

Permanent Termination with PigtailsUse pigtails to terminate incoming fiber cables at patch panels or ODFs. Fusion splice the bare fiber end of the pigtail to the incoming cable to ensure low insertion loss and stable connections. Ideal for backbone or long-term infrastructure where frequent changes are not expected.

Flexible Connections with Patch CordsUse patch cords to connect the front ports of patch panels to active devices. They allow easy reconfiguration, testing, and maintenance without disturbing the permanent splices. Patch cords act as the “agility layer” in the network, enabling moves, adds, and changes efficiently.

Best Practices

Avoid using patch cords as permanent splices; they are not designed for long-term field termination. Match fiber types (single-mode or multi-mode) and connector types (LC, SC, ST) between pigtails, patch cords, and devices to prevent signal loss. Keep patch cords short and neatly routed to reduce bend loss and maintain airflow in racks.

Inspect and clean connectors regularly to maintain optimal signal quality.

Summary

In computer rooms, pigtails provide permanent, low-loss terminations, while patch cords offer flexible, front-end connectivity for devices and patch panels. Using both appropriately ensures high-performance, maintainable, and scalable fiber optic networks. Proper planning of fiber types, connector standards, and routing practices is essential for reliable operation and minimal downtime.
