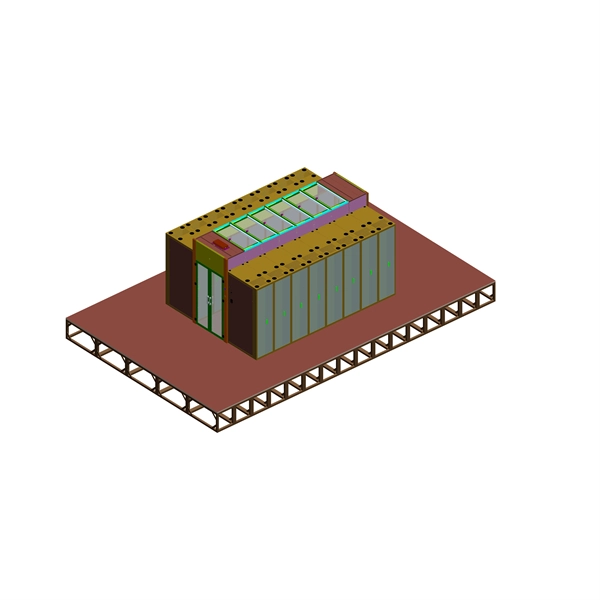

Proper installation of a primary power distribution box involves careful site selection, secure mounting, correct wiring, grounding, and safety checks to ensure reliable and safe power distribution.Site Selection and Preparation
Choose a dry, well-ventilated, and accessible location close to the main power supply to minimize power loss and facilitate inspection and maintenance . Avoid areas with high humidity, corrosive substances, or flammable materials . Ensure sufficient space around the box for ventilation and future expansion. For outdoor installations, select an enclosure with IP66 or NEMA 4 ratings to protect against water and dust .
Mounting the Distribution Box
Install the distribution box on a metal or non-wood insulated mounting board to prevent electrical hazards . Use suitable mounting brackets or screws to secure the box firmly, ensuring it is level and stable . The bottom edge of the box should typically be 1.5 to 1.8 meters above the ground for easy access . Ensure all internal electrical appliances are fastened on the mounting plate without inclination or looseness, maintaining proper spacing according to standards .
Wiring and Electrical Connections
- Power Off: Always disconnect the main power supply before wiring .
- Wire Preparation: Use high-temperature resistant copper wires with cross-sectional areas meeting load requirements, typically not less than 2.5 mm² for temporary construction power . Strip insulation to the appropriate length and ensure no exposed live parts.
- Circuit Breakers: Install MCCBs, MCBs, and fuses according to load calculations for machinery, lighting, and welding equipment .
- Termination: Connect line to line, neutral to neutral, and ground to ground, following color coding standards. Ensure the protective neutral and action zero lines are properly separated and connected to the terminal board .
- Cable Management: Route and secure wires neatly with cable ties, leaving space for heat dissipation and avoiding sharp edges .
Grounding and Safety Protection
- Grounding: Connect the metal box, mounting board, and all internal metal components to a reliable earth ground .
- Leakage Protection: Install a residual current device (RCD) or leakage protector to enhance safety .
- Inspection: Perform visual checks and use a multimeter or insulation resistance tester to verify proper connections and insulation resistance before energizing the system .
Labeling and Documentation
Label each circuit clearly for future maintenance and troubleshooting. Record installation details, including wire sizes, breaker ratings, and grounding connections, to comply with local codes and standards such as NEC, IEC, or UL/CE certifications .
Final Checks
After installation, reconnect the power supply and perform functional tests, including load distribution verification and insulation resistance testing, to ensure the system operates safely and reliably . Schedule regular inspections and maintenance to maintain long-term reliability. By following these steps, the primary power distribution box will be installed safely, efficiently, and in compliance with construction site electrical standards.
