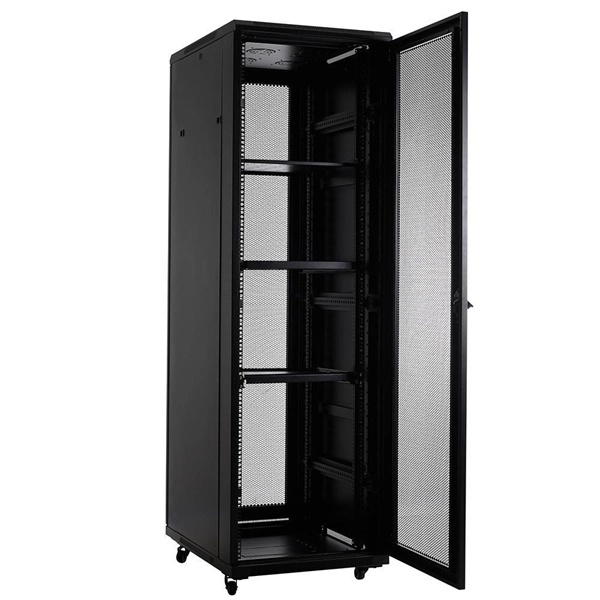

Heat dissipation and ventilation distribution box

Effective ventilation and heat dissipation in distribution boxes are essential to prevent overheating, extend component life, and ensure operational safety.

Importance of Heat Management

Distribution boxes house components such as circuit breakers, relays, PLCs, and VFDs, all of which generate heat during operation. Excessive internal temperatures can accelerate aging of capacitors, semiconductors, and insulation, reduce reliability, and even cause catastrophic failures. Studies indicate that every 10°C increase in operating temperature can halve the lifespan of electrical components, making proper heat management critical for safety and longevity.

Cooling Methods1. Natural Heat Dissipation (Passive Cooling)Utilizes the metal casing of the distribution box to dissipate heat through natural convection. Heat sinks or ventilation holes can be strategically placed to enhance airflow and heat transfer.

Best suited for small enclosures or low-power applications where temperature differences are sufficient for passive cooling. 2. Forced Ventilation (Active Cooling)Fans or air ducts are installed to expel hot air and introduce fresh air, accelerating heat removal.

Suitable for high-power distribution boxes or environments with elevated ambient temperatures. Requires maintenance of filters and may reduce the enclosure's IP rating if not properly sealed. 3.

Heat Sinks and Thermal Conductive Materials

Aluminum or copper heat sinks can be mounted inside or outside the box to increase the heat dissipation area. Efficiently transfers heat from components to the surrounding air, complementing natural or forced ventilation. 4.

Water Cooling or Heat Exchangers

Circulates water to remove heat from high-density or high-power boxes. Heat is then released via radiators or heat exchangers, suitable for extreme thermal loads or high-temperature environments. 5.

Air Conditioning Units

For precise temperature control, especially in sensitive or high-density installations. Maintains internal temperatures independently of ambient conditions, often used in critical industrial or telecom applications.

Design Considerations

Internal Layout Optimization: Proper spacing between components prevents thermal hotspots and allows convection currents to flow, reducing local overheating. Vertical thermal chimneys and baffles can guide heat toward dissipation zones. Material Selection: Enclosures with high thermal conductivity or multi-layer insulation can improve heat transfer or reduce heat ingress.

Environmental Factors: Outdoor cabinets must account for solar radiation and ambient temperature swings, while indoor cabinets focus on internal heat loads. Standards Compliance: Follow NEMA or IEC standards for enclosure ratings, ventilation openings, and safety clearances to ensure both heat dissipation and protection against dust, water, or fire hazards.

Summary

Effective heat management in distribution boxes combines passive and active cooling strategies, optimized internal layouts, and proper material selection. The choice of method depends on power density, ambient conditions, and safety requirements, ensuring reliable operation, extended component life, and reduced risk of thermal-related failures.
