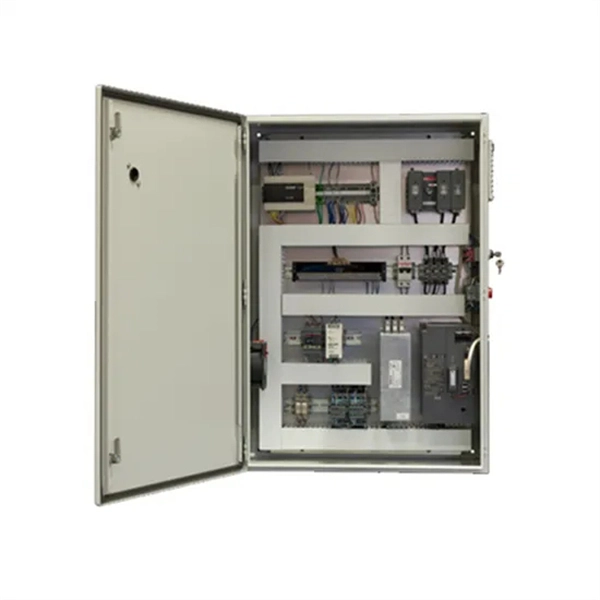

Hard wiring in the distribution box

Hard wiring a distribution box involves securely connecting the main power supply to protective devices and branch circuits while ensuring safety, proper insulation, and compliance with electrical standards. Key Components of a Distribution BoxA distribution box typically consists of an enclosure and internal electrical components. The enclosure protects against dust, water, and physical damage, with IP or NEMA ratings indicating the level of protection.

Inside, you will find circuit breakers (MCBs), residual current devices (RCCBs), busbars, terminal blocks, and wiring. Some boxes include DIN rails for mounting additional devices and cable entry points for neat wire management.

Step-by-

Step Hard Wiring Procedure

Preparation and SafetyTurn off the main power supply before starting. Choose a suitable location: dry, ventilated, and accessible, typically around 1. 5 meters above the floor.

Ensure the box is level and stable; use waterproof enclosures for outdoor installations.

Mounting the Box

Mark and drill holes on the wall or mounting surface. Fix the box using expansion bolts or screws, ensuring it is secure and level.

Wire Preparation

Strip insulation from wires to the correct length. Use the appropriate wire gauge for the load and ensure proper insulation.

Connecting Input Power

Connect the phase (live) wire to the input terminal of the main MCB. Connect the neutral wire to the neutral link. Connect the ground wire to the earth terminal or busbar.

Connecting Protective Devices

The output of the main MCB connects to the input of the RCCB (if used). Connect the output of the RCCB to the branch MCBs. For double-pole MCBs, connect both phase and neutral; for single-pole MCBs, connect only the phase wire.

Branch Circuit Wiring

Connect each branch circuit to its respective MCB. Ensure neat cable management and secure connections to prevent loose contacts.

Final Checks

Perform visual inspection and multimeter tests for continuity and insulation resistance. Verify that all breakers and fuses match the load requirements. Label all circuits for easy identification and future maintenance.

Best Practices

Use UL/CE-certified components and comply with local electrical codes (NEC, IEC, or regional standards),. Include surge protection devices if necessary. Consider modular designs for easier upgrades and maintenance.

Schedule regular inspections to ensure long-term reliability. For complex or automotive applications, hard-wired distribution boxes can include pre-fuse modules, busbars, and integrated switching functions for optimized power distribution. By following these steps and safety measures, a hard-wired distribution box can provide a reliable, organized, and safe electrical distribution system for residential, commercial, or industrial applications.
